Sheet Lamination Machine

Sheet Lamination Machine

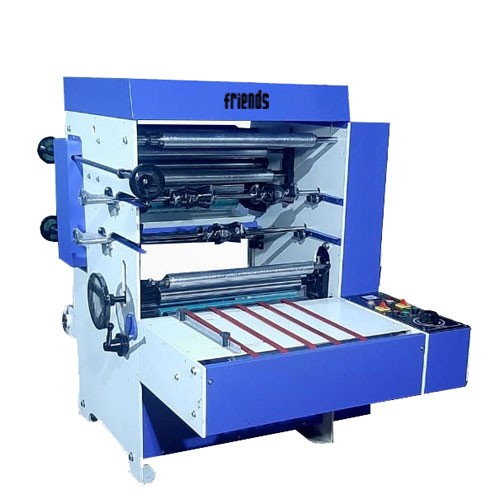

We use this opportunity to introduce our quality Friends very significant and Heavy Duty Sheet Lamination Machine. Lamination is the method thru which a sheet or roll is inserted separately into a conveyor kind Input bed of the Machine. A Transparent or Printed Lamination Film roll is constant by means of operator on the Lamination Roll gift within the Sheet Lamination Machine. With the assist of Gears and Motor, the Gum Rolls observe layer of Adhesive Solution on sheet and after which the Lamination film Roll is Stretched pressed against it to supply a laminated Output

The Graded Components Such as Multi Hardened Chrome Rolls, Heavy Durable En Graded Gears, All Weather Proof Gum Roll, Heavy Durable Anti Rusting gum tray are equipped in our Sheet Lamination Machine to provide magnificent output quality. The Variable Speed Drive, Electrical systems including Motor, Control and Operational Panel are assembled in the machine.

Features

Based on the Features, Machine is Categorized into the following Variants.

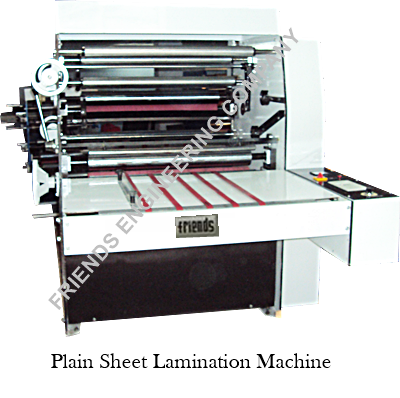

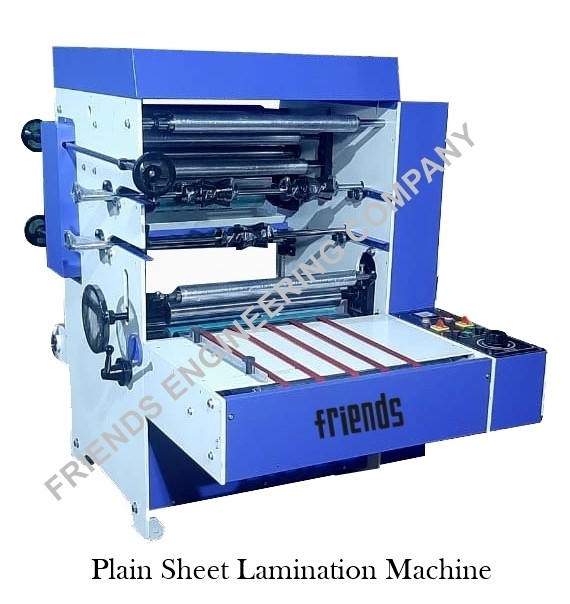

Plain / Hot and Cold Lamination Machine :

This is very commonly used Machine, where the gum tray is present to hold the bonding agent (gum) dissolved into a liquid (water or a solvent or a solution), is applied to one of the webs. The adhesive coated web is laminated to the other under strong pressure which improves the bond strength of the laminate. It is commonly used to produce a Duplex sheets / paper-aluminum foil laminate that are widely used in flexible packaging. INPUT: SHEET FORM OUTPUT: ROLL FORM

Roll to Roll Lamination Machine:

For the purpose such as Paper Plate Lamination Roll Making, Kraft BOPP Roll Lamination Making, When Cold or Plain Lamination Machine is attached with a Special Roll winding Mechanism along with the Roll Stand to allow the operator have optional to Insert the Input in sheet or Roll Form. INPUT: SHEET / ROLL FORM OUTPUT: ROLL FORM

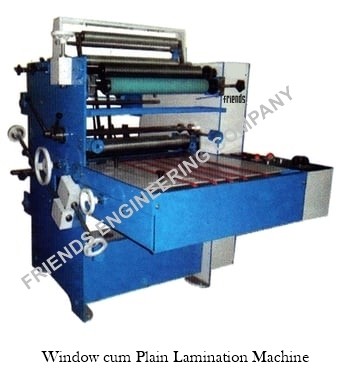

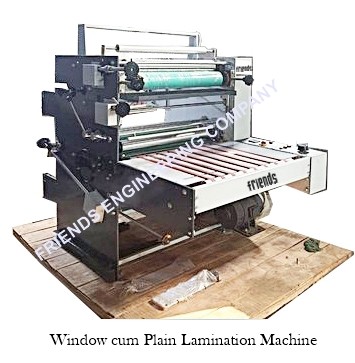

Window cum Plain Lamination Machine:

This Special Dual Machine is used for Window type Lamination along with Cold / Plain Lamination. Any box with a window or open cut out of any shape can be laminated through this Machine only like Garments see through boxes, Sweet Boxes, Dry Fruit Boxes, Fancy Packaging Boxes, etc. This Machine Scrap out the Excess Gum and make a successful see through laminated sheet. INPUT: SHEET FORM OUTPUT: ROLL FORM

Lamination Sheeter Machine:

This is an Additional Attachable Machine used to Re-separate the Laminated Roll output into Sheets. Machine is Equipped with Special Sensor System program, which automatically Detects the gap intentionally kept by the operator between two sheets at the time of Lamination and separates it into sheet. This Machine can be Attached with Lamination Machine to Produce the sheets immediately with the Help of Variable speed Drive specially added to help to synchronize the speed with Lamination Machine as well as this Machine can be used to work Independently.
