We are counted amongst the emerging manufacturers and exporters of Fingerless corrugation machine. The machine is designed with huge motorized reel stand that has a capacity of lifting 2-ton reel at a time. Suction guides the fluted paper in the fingerless corrugation machine. Because there are no slots in the gum applicator roll, it is continuous and uniform from one end to the other. The Fingerless Corrugation Machine is very Advanced and built with number of features and Automatic factors.
Leading Manufacturers and Exporters of Printing, Packaging and Binding Machinery
ISO Certified Company 9001:2015

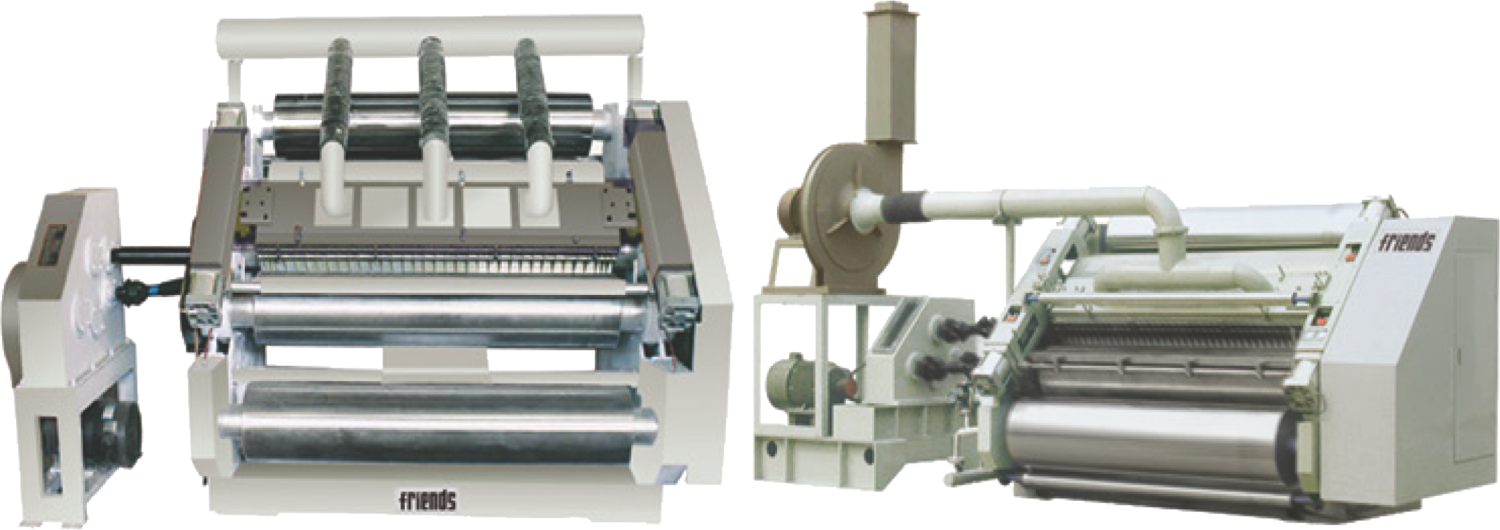

Fingerless Corrugation Machine
Fingerless Corrugation Machine
Features
- There are no Adapter Marks on the Board. Because the fingerless machine lacks a brass adapter, there is no possibility of brass adapter marks on the board.
- Compression for Increased Board Strength-Because there is a fixed flute height and diameter, the constricting strength of the board increases in a fingerless corrugation machine.
- Increased BF (Bursting Factor) of the Board-As the board's contraction strength increases, so does its BF.
| Machine Size (mm) | FRIENDS 1400 - 2300 | ||
| Roller Dia. (mm) | 280 | 320 / 360 | 380 |
| Heating type | Steam / electric / oil | ||
| Corrugated roller material | 48CrMo alloy steel / 52CrMo alloy steel | ||
| Wallboard type | Oblique / square | ||
| Transmission type | Gear box / chain | ||
| Feeding type | Fingerless / finger | ||
| Design speed | 100m/min | 150m/min | 200m/min |
| Pneumatic working pressure | 0.4-0.9Mpa | ||
| “Upper corrugated roller diameter” | 0280mm | 0320mm | 0350mm |
| “Lower corrugated roller diameter” | 0280mm | 0320mm | 0380mm |
| Pressure roller diameter | 0280mm | 0320mm | 0385mm |
| Glue roller diameter | 0242mm | 0242mm | 0268mm |
| Paste fixed roller diameter | 0127mm | 0127mm | 0140mm |
| Preheat roller diameter | 1402mm | 1402mm | 1402mm |
| Main driving motor | 11KW | 15KW | 30KW |
| Wind suction motor | 11KW | 15KW | 30KW |
| Bearing | SKF / NBC / NACHI | ||
