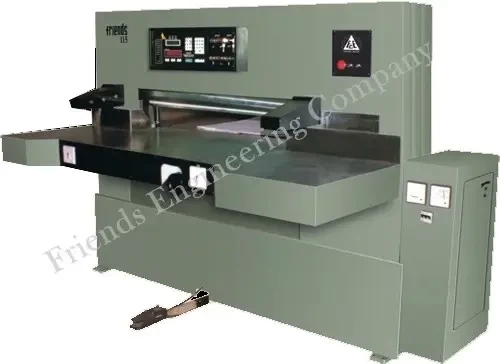

Paper Cutting Machine

Paper Cutting Machine

Our company, " FRIENDS ENGINEERING COMPANY ," provides a wide selection of automatic paper cutting machines, fully automatic paper cutting machines, semi automatic paper cutting machines, hydraulic paper cutting machines, and programmable paper cutting machines in different cutting lengths to meet the needs of the printing industry.


Our Paper Cutting Machine is a result of exceptional hypothesis and reasonable experience, which has been acquired over years. For guaranteeing Accurate right point cut, we consolidate different well being measures, highlights and automation factors while Manufacturing Paper Cutter Machines.

Features

"Friends" brand automatic, hydraulic and semi automatic Paper cutting machine is meant for paper cutting , creasing, sheets etc. Paper Cutting Machine is equipped with paper cutting models which is outfitted with the Double Side Gear. The Auto Clamp framework which no greater requires any guide adjustment of the Clamp whilst making use of the gadget. The Clamp routinely goes up ultimately after cutting paper / Sheets. This version is simple to perform as the switches are furnished at the front side of the table.


The automobile lower back Gauge is likewise on hand on this gadget. The again Gauge take a look at slides in a square melancholy, making certain smooth cross cutting. Steel Parts are outstanding chrome nickel plated, making sure it seems simply as lifestyles span. This machine is outfitted with the Double Side Gear having Clutch framework as it's miles having in wheel likewise at the body aspect, which prevents the probabilities of system coming down after reducing and keep away from any type of damages.


This Machine is equipped with the Clutch system with no noise of Clutch and very low cost in maintenance. The main body is equipped with bearings to provide enhanced smooth operations. The Clutch can be operated with foot also which is optional.

Silent Features of Paper Cutting Machine:


  • Accuracy Cutting.

  • Mechanized Back Gauge with manual instrument for fine changes.

  • Two front Push button control.

  • Photograph cell and functional well being gadgets.

  • Expanded side tables for stocks underway and side plates on back table.

  • Foot Clamping and Central oil.

  • Cross equal depressions on the blade plate to keep away from relocation significantly under weighty tension.

  • Lighting on cutting line.

  • Fly wheel and V belts are secured by a metal gatekeeper.

  • Locking gadget is given on the quick strung shaft to forestall separation of back measure against strain of heap.

  • Multi circle grip sends positive slip less drive with least upkeep.

  • Blade is effectively inconsistent just as movable by unusual switches.

  • Cross equal furrows on the blade plate gave to stay away from uprooting considerably under weighty tension.


To know the price of the machine , contact us anytime.
  • Technical Specification


 Model

33”

37”

43”

 Cutting Length

840 mm (33”)

900 mm (37”)

1070 mm (43”)

 Cutting Width

840 mm (33”)

900 mm (37”)

1070 mm (43”)

 Clamp Opening

100 mm (4”)

113 mm (4½”)

125 mm (5”)

 Cuts per Minute (approx)

30

25

20

 Power required

2 H.P.

3 H.P.

3 H.P.

 Power for Motorized Back Gauge

½ H.P.

½ H.P.

½ H.P.

 Machine Dimensions

1650 x 1650 mm
(66” x 66”)

1950 x 1950 mm
(78” x 78”)

2150 x 2150 mm
(86” x 86”)
