Programmable Paper Cutting Machine

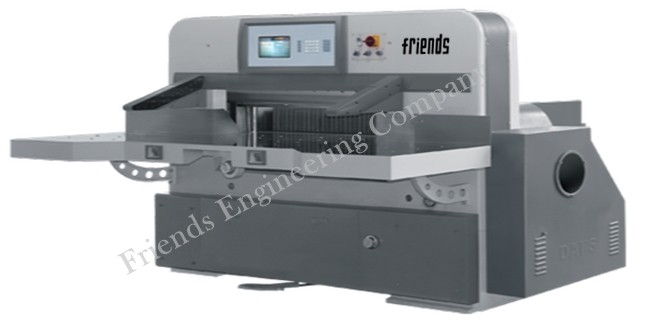

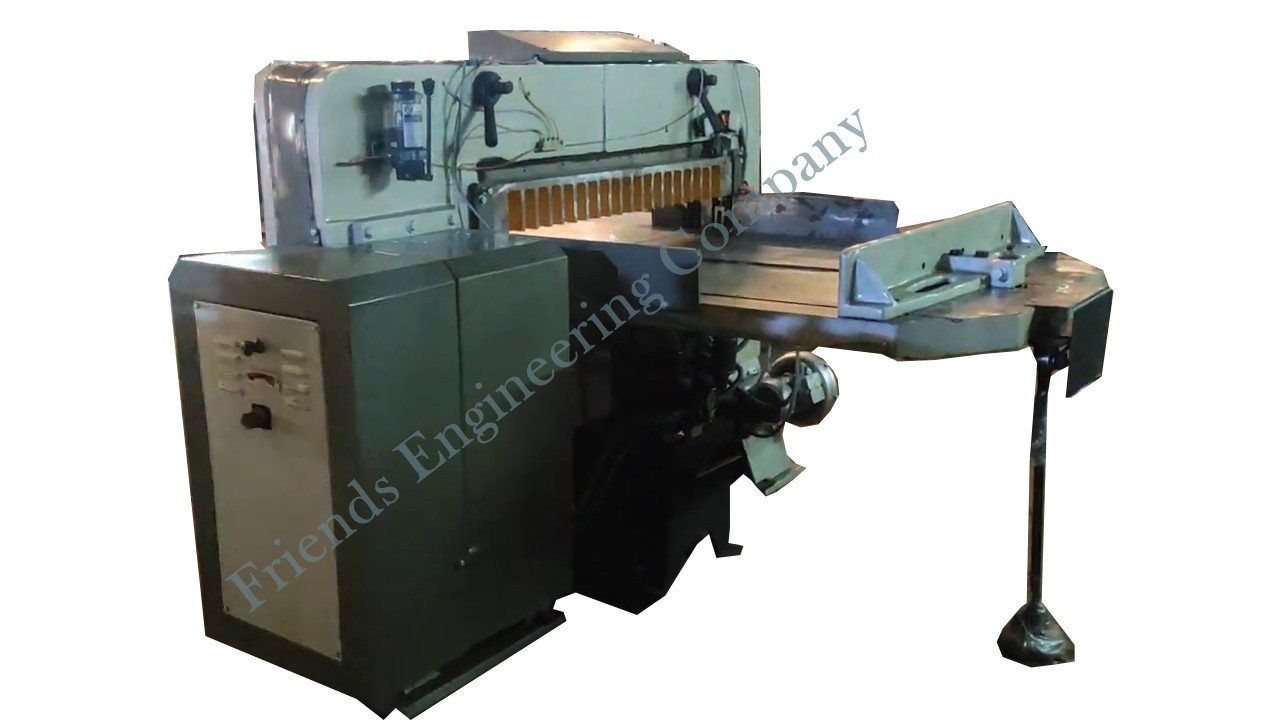

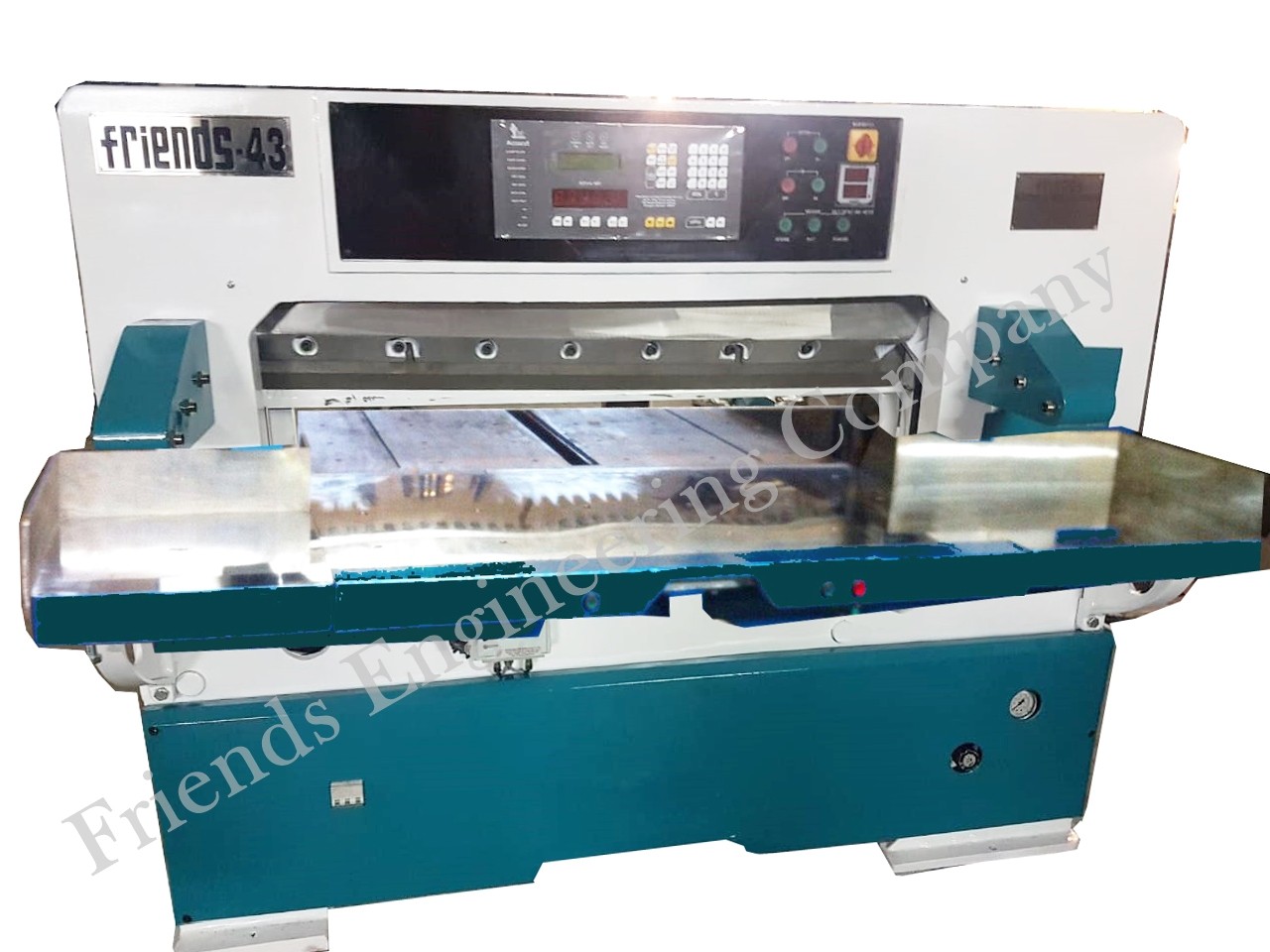

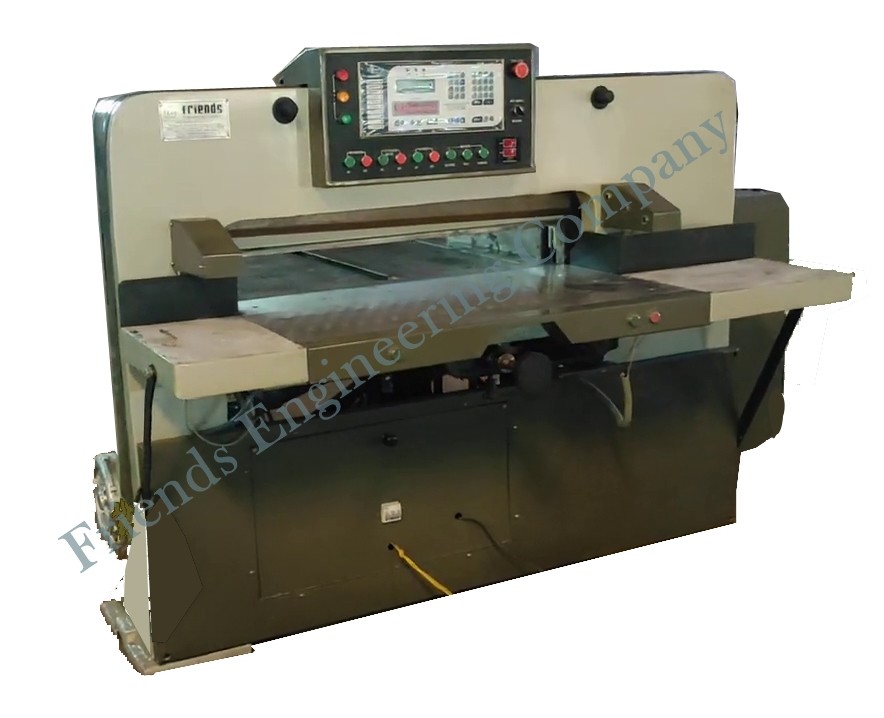

Friends brand "Programmable Paper Cutting Machine " contains everything required for a Accurate Paper Cutting (programmable). Auto Measurements Devices, Programmable Devices, Air Cushion Stainless Steel Bed, Established intuitive operator guidance, Hydraulic Pressure System, large touch screen and process visualization.

Programmable Paper Cutting Machine is Equipped with Programmable Adjustable back-measure for precise parallelism & cutting with blade edge. Electromagnetic grasp framework for most extreme productivity and least support. The quick cutting stroke is extremely precise, to the blade transporter guides. This machine is moving along as planned and exact with its strong plan. The Hydraulic Pressing is given well being to administrator of Programmable Paper Cutting Machine in India.

Features

The "Friends" Brand " Programmable Paper Cutting Machine" provides safety censor cells which work on the safety of the operator against any kind of Accidents.
Box type design of parts and high grade material of main parts gives rigidity & long life to the machine.
Specially designed electromagnetic clutch & brake unit ensures quick action of knife carrier.
Latest hydraulic power pack unit with double pressure cylinder for smooth hydraulic transmission.
Infra red photo electric safety device in front of cutting knife.
AC drive system for smooth and uniform movement of back gauge.
The back gauge is driven by dual speed motor with separate E.M. clutch brake unit mounted on its lead screw.
Slot closing belt is provided on main bed of machine.
Dust free feather touch key board for smooth operation of programmed unit.
Program controlled air cushion table for easy movement of bulky stock.

Technical Specification

Model	33	37	43	45	55
Cutting Width	33"(835mm)	37" (900mm)	43" (1060mm)	45" (1150mm)	55"(1300mm)
Clamp Opening	120 mm (4.5”)	120 mm (4.5”)	130 mm (5.0”)	130 mm (5.0”)	130 mm (5.0”)
Minimum Cut without False Clamp	25 mm (1”)	25 mm (1”)	25 mm (1”)	25 mm (1”)	25 mm (1”)
Speed of Mechanical Cut/Minute	50	50	45	40	40
Blade Thickness	12.7 mm (½”)	12.7 mm (½”)	12.7 mm (½”)	12.7 mm (½”)	12.7 mm (½”)
Power required	5 H.P.	7 H.P.	7 H.P.	7 H.P.	10 HP
